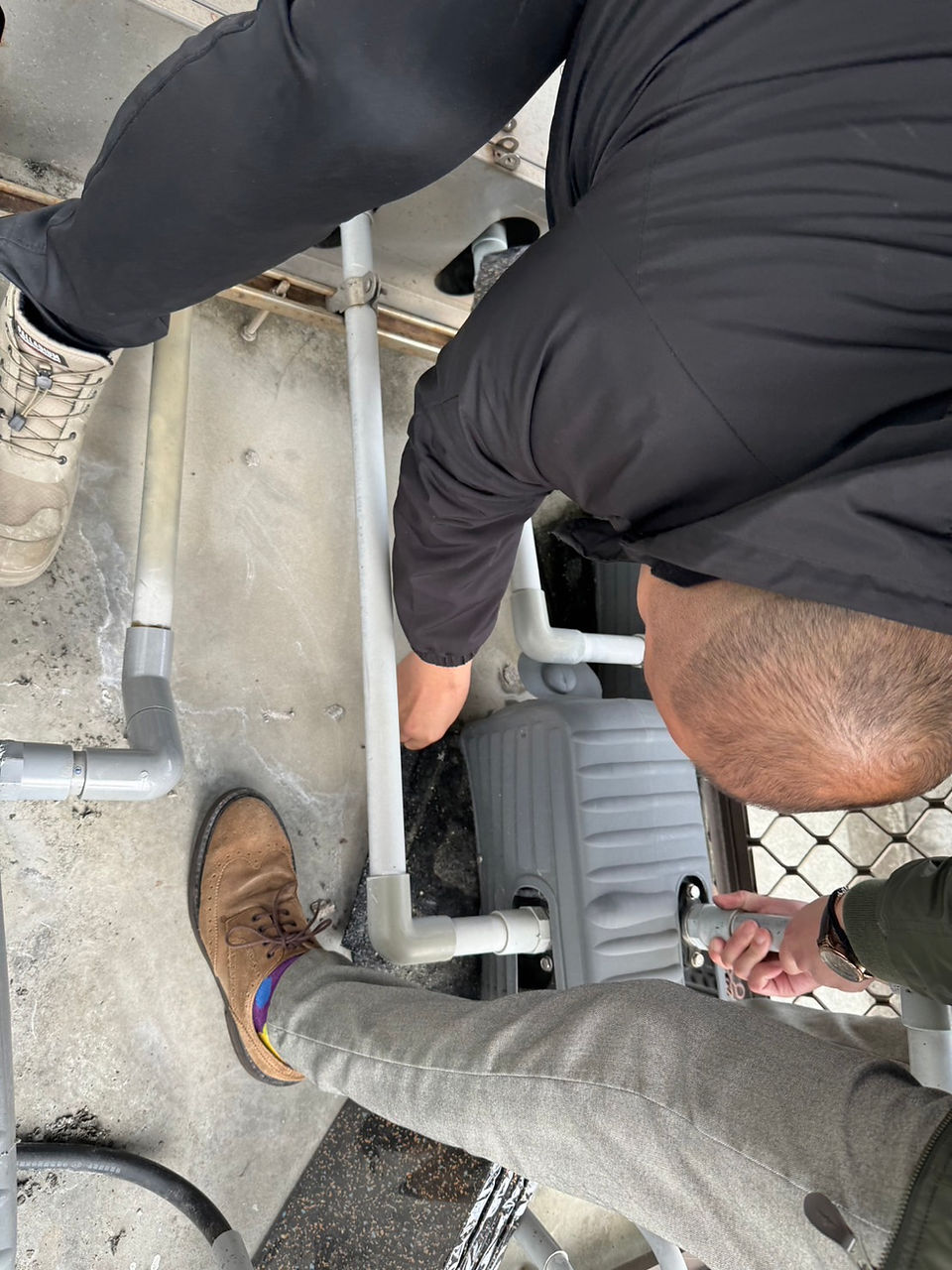

[Getzner] Anti-Vibration and Noise Reduction for Rooftop Water Pump in Residential Building

Originally published on Mar 13, 2024

Acoustic Floor Mat 23

Acoustic Floor Mat 23 is highly resilient impact noise sound insulation with a polyurethane base. It is characterized by a low installation height and an excellent price-performance ratio. Due to the 3D profiling, it adapts to a wide variety of loads and is ideal for hotels or event rooms.

Product properties AFM23

• Impact sound reduction ∆Lw: 23 dB

• Dynamic stiffness st': ≤ 35 MN/m³

• Load range: 5,000 kg/m²

• Thickness: 6 mm

• Delivery form: 1500x1200 mm

• Weight by area: 1.5 kg/m2

• Compressibility c: ≤ 1 mm

• Flammability: Class E

• Thermal conductivity λ: 0.06 W/mK

Advantages and benefits

• Low installation height and therefore particularly suitable for renovation projects

• Resistant to high loads

• Quick installation, no need for bonding to the foundation

• Easy handling

•

•

•

•

•

•

•

•

•

•
